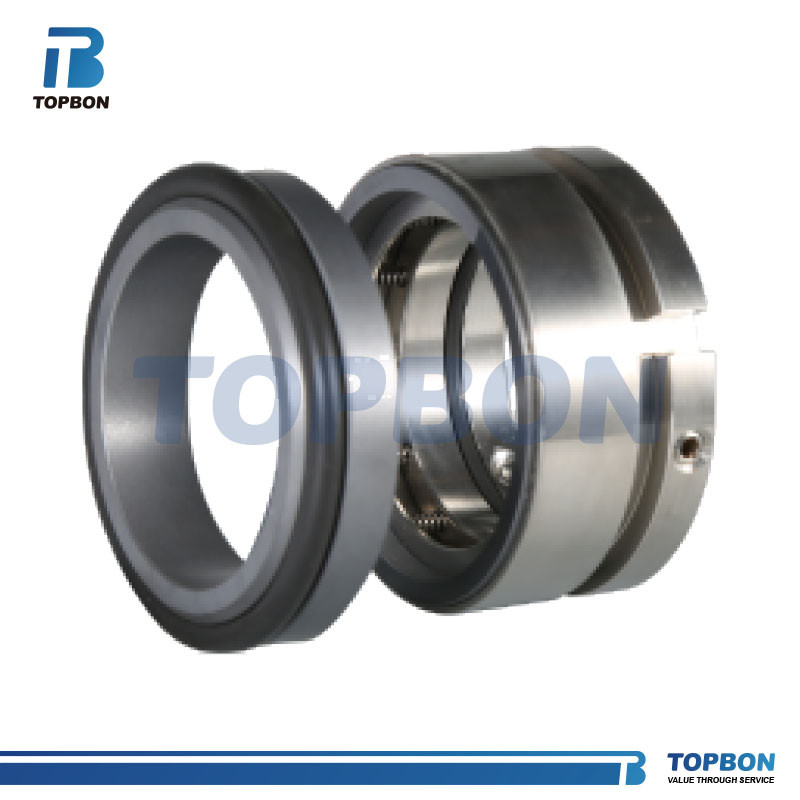

Mechanical Seal TBGLF14U replace AESS SAIS06 ,Upper Seal for Grundfos S range submersible pump seals
Mechanical Seal TBGLF14U replace AESS SAIS06 ,Upper Seal for Grundfos S range submersible pump seals

Mechanical Seal TBGLF14U replace AESS SAIS06 ,Upper Seal for Grundfos S range submersible pump seals

Model
TBGLF14U

Item specifics

Material
B,Q2,U2,P,E,V,F,G
Size
30MM 38MM 50MM 65MM

Review

Description

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBGLF14U

Replace AESS SAIS06 ,Upper Seal for Grundfos S range submersible pump seals



Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
B,Q2,U2,P,E,V,F,G
Operational Conditions:                                                           Seal Size:

Clean Water                                                                                                                                       30MM 38MM 50MM 65MM

sewage water

oil and other moderately corrosive fluid
Product details
Drawing
d (mm)
D1
D3
L1
L2
30
45.00
46.00
24.00
10.00
38
56.00
58.00
27.00
11.00
50
70.00
70.00
27.00
13.00
65
85.00
90.00
32.00
13.00
