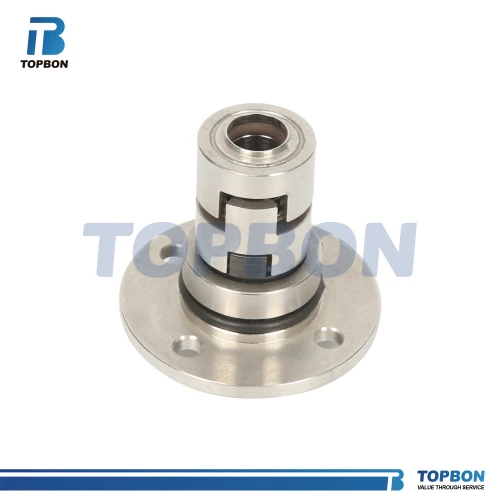

Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
Model
TBGLF13

Item specifics

Material
B,Q2,U2,P,E,V,F,G
Size
22MM

Review

Description

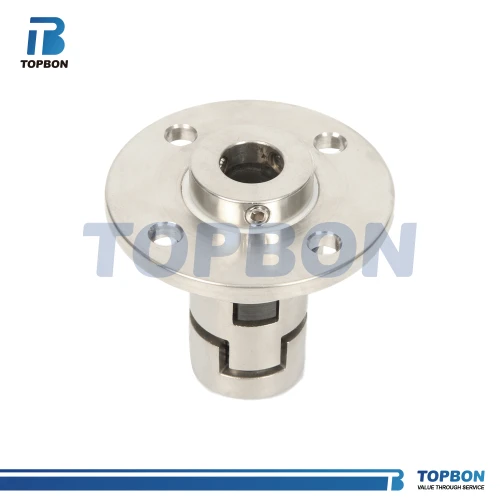

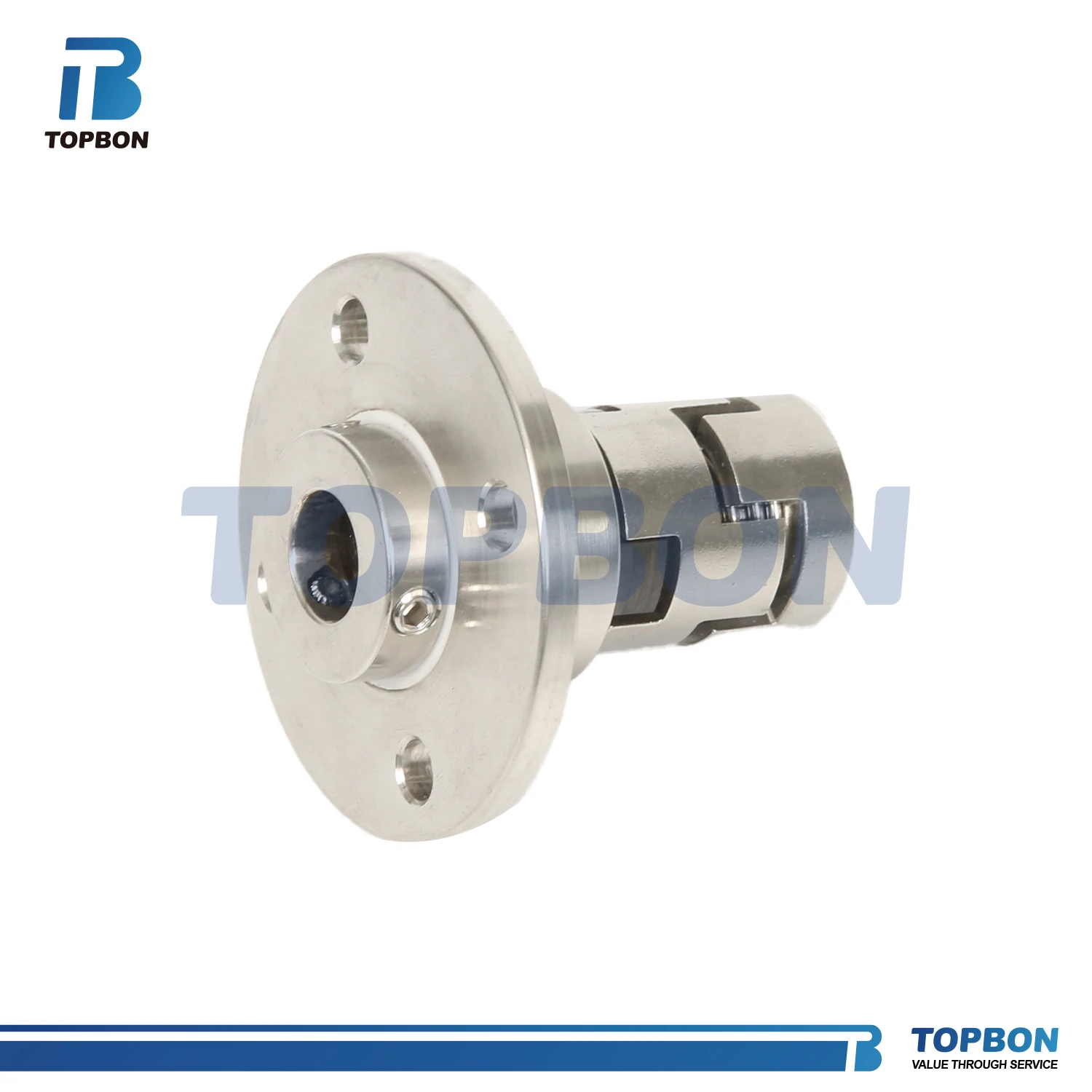

Mechanical seal TBGLF13

Suit for GRUNDFOS CR, CRN and CRI series pumps



Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
B,Q2,U2,P,E,V,F,G
Operational Conditions:                                                           Seal Size:

Clean Water                                                                                                                                       22MM

sewage water

oil and other moderately corrosive fluid
Product details
Drawing
Size/
Metric
d0
d
D3
D2
D1
L1
L2
L3
L6
14
18
14
32
21
25
30.5
12.0
18.5
6.0
16
20
16
34
23
27
30.5
12.0
18.5
6.0
18
22
18
36
27
33
31.5
13.5
20.5
6.5
20
24
20
38
29
35
31.5
13.5
20.5
6.5
22
26
22
40
31
37
31.5
13.5
20.5
6.5
24
28
24
42
33
39
34.2
13.3
20.3
6.7
25
30
25
44
34
40
34.5
13.0
20.0
7.0
28
33
28
47
37
43
37.5
12.5
19.5
7.5
30
35
30
49
39
45
38.0
12.0
19.0
8.0
32
38
32
54
42
48
38.0
12.0
19.0
8.0
33
38
33
54
42
48
38.0
12.0
19.0
8.0
35
40
35
56
44
50
38.0
12.0
19.0
8.0
38
43
38
59
49
56
39.5
13.0
20.0
10.0
40
45
40
61
51
58
39.5
13.0
20.0
10.0
43
48
43
64
54
61
39.5
13.0
20.0
10.0
45
50
45
66
56
63
39.5
13.0
20.0
10.0
48
53
48
69
59
66
39.5
13.0
20.0
10.0
50
55
50
71
62
70
44.0
13.5
20.5
11.5
53
58
53
78
65
73
44.0
13.5
20.5
11.5
55
60
55
80
67
75
44.0
13.5
20.5
11.5
58
63
58
83
70
78
49.0
13.5
20.5
11.5
60
65
60
85
72
80
49.0
13.5
20.5
11.5
63
68
63
88
75
83
49.0
13.5
20.5
11.5
65
70
65
90
77
85
49.0
13.5
20.5
11.5
70
75
70
95
83
92
55.5
14.5
21.5
13.5
75
80
75
104
85
97
55.5
14.5
21.5
13.5
80
85
80
109
95
105
55.0
15.0
22.0
13.0
85
90
85
114
100
110
60.0
15.0
22.0
13.0
90
95
90
119
105
115
60.0
15.0
22.0
13.0
95
100
95
124
110
120
60.0
15.0
22.0
13.0
100
105
100
129
115
125
60.0
15.0
22.0
13.0
