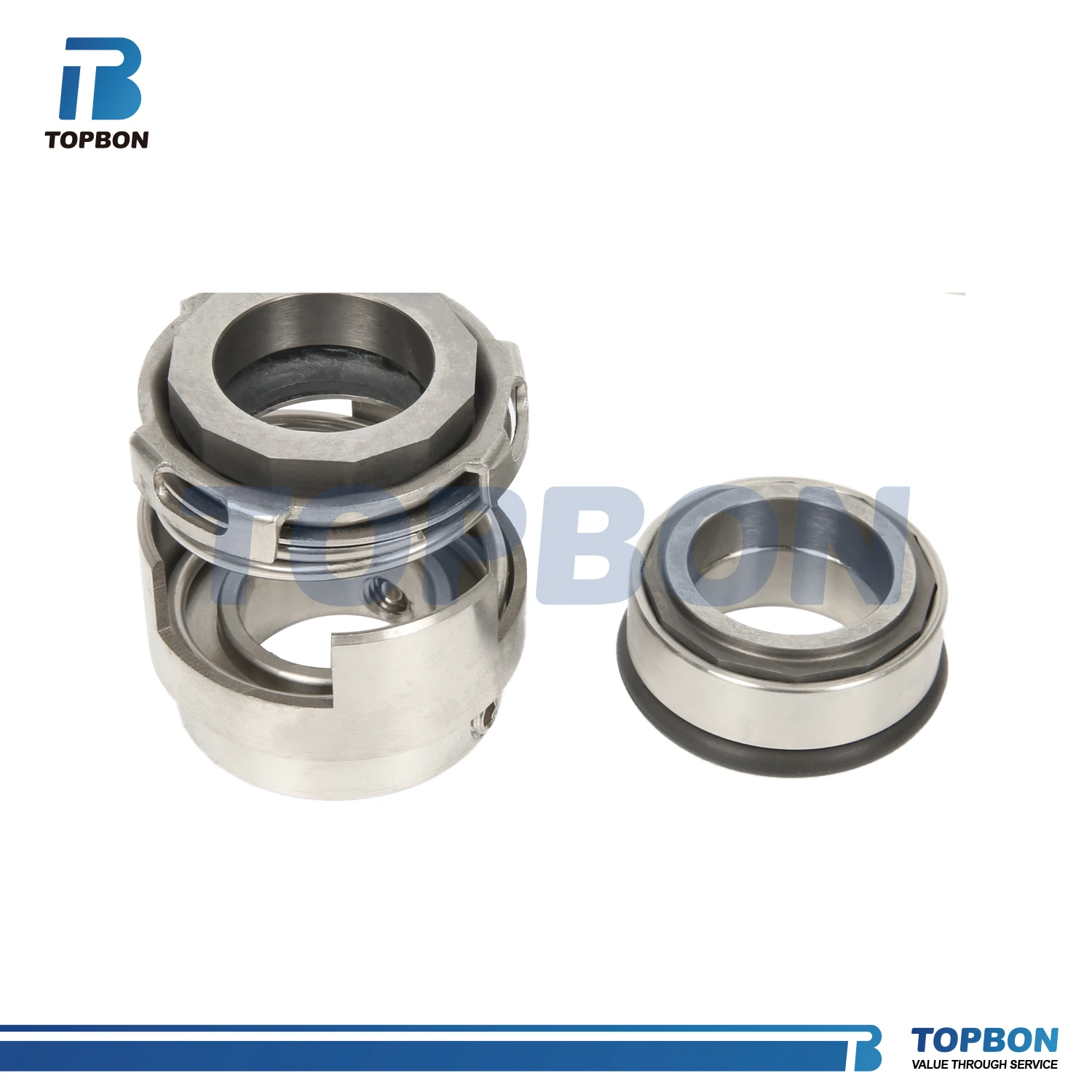

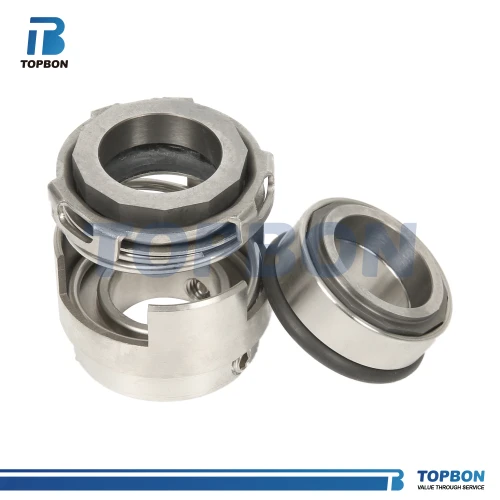

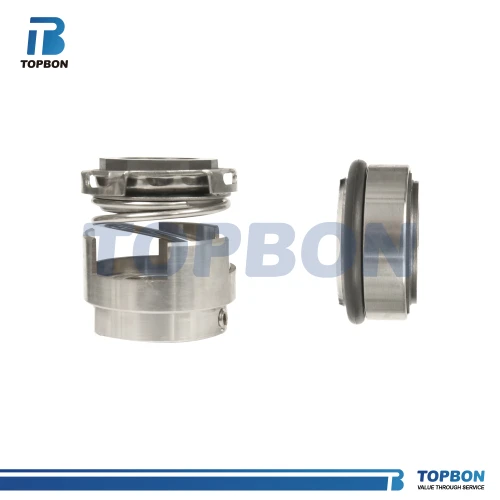

Mechanical Seal TBGLF11 replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps
Mechanical Seal TBGLF11 replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps
Mechanical Seal TBGLF11 replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps
Mechanical Seal TBGLF11 replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps

Mechanical Seal TBGLF11 replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps

Model
TBGLF11

Item specifics

Material
A,B,Q1,Q2,U1,U2,P,E,V,F,G

Review

Description

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBGLF11

replace Lidering GR-A-LG-22, Suit for CM CME1,3,5,10,15,25 and CMV Series Pumps



Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
A,B,Q1,Q2,U1,U2,P,E,V,F,G
Operational Conditions:                                                           Seal Size:

Clean Water                                                                                                                                       22mm

sewage water

oil and other moderately corrosive fluid
Product details
Drawing
d (mm)
D1
L1
L2
22
38.30
50.50
15.50
