Mechanical Seal TBGLF6 replace Grundfos Type B, Lidering GR-B
- Model
- TBGLF6
Item specifics
- Temperature
- -20℃-180℃
- Speed
- ≦10m/s
- Pressure
- ≦1.2MPA
- Rotary Ring Material
- CAR/SIC/TC
- Stationary Ring Material
- CAR/SIC/TC
- O-Ring Material
- VIT,NBR,EPDM
- Spring & Metal Parts
- SUS304
Review
Description

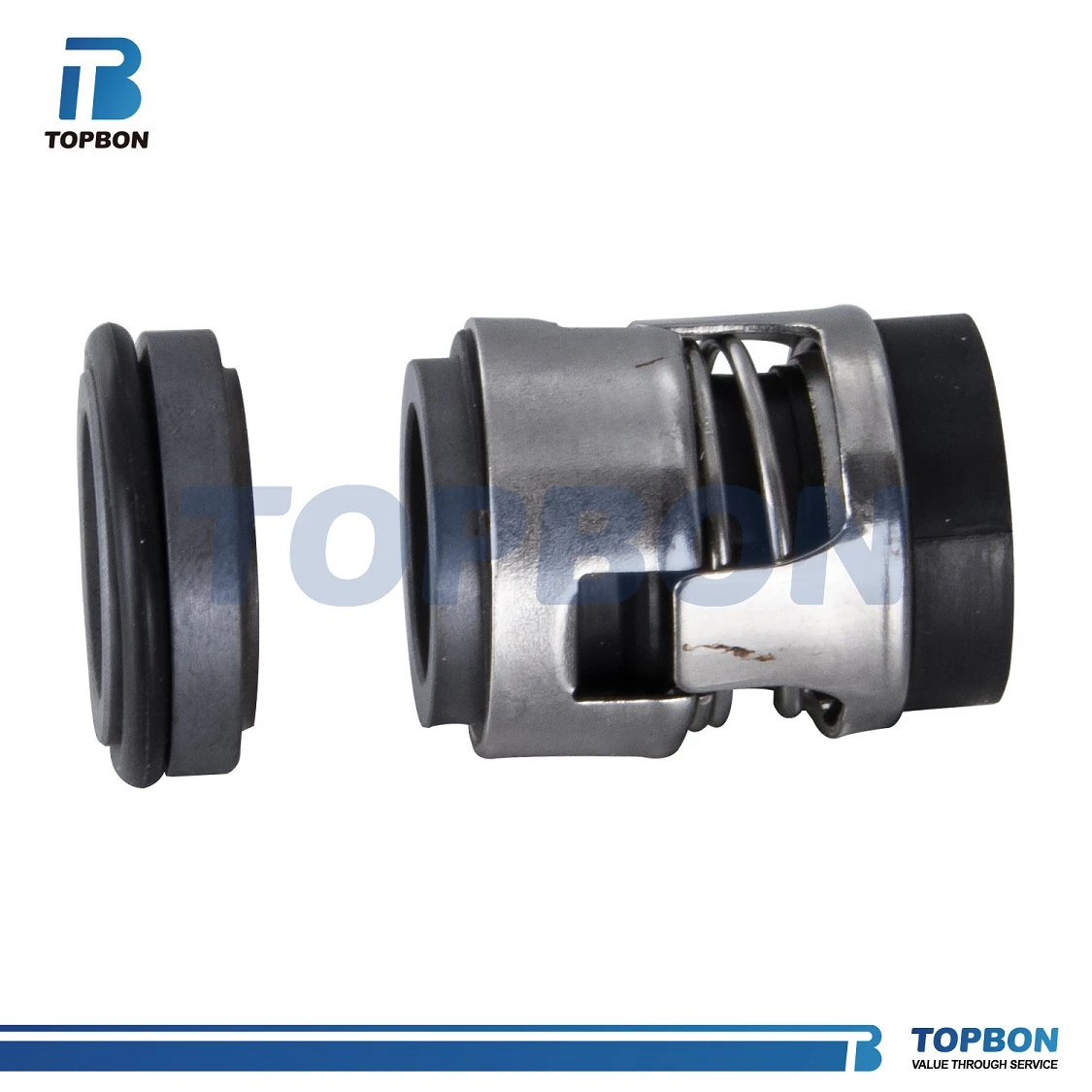

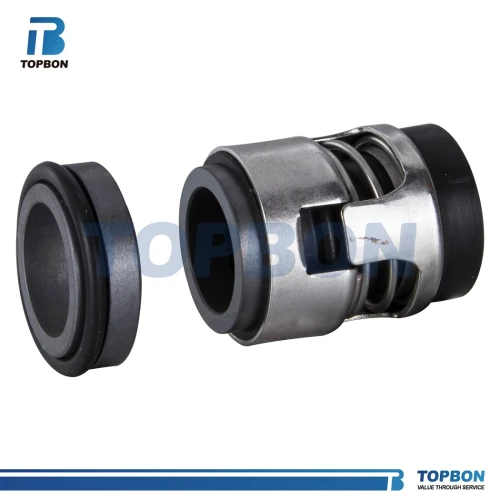

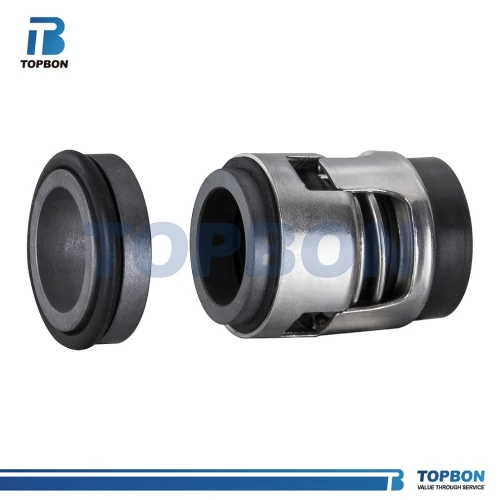

Mechanical seal TBGLF6
TBGLF-6 is an original Grundfos seal with single spring o-ring
Mounted semi-cartridge seals with push-fit head
Suitable for Grundfos Pumps
![](https://icdn.tradew.com/file/202008/1574616/jpg/7488251.jpg?x-oss-process=image/quality,Q_90)
Operational Conditions: Seal Size:
Clean Water 12mm
sewage water 16mm
oil and other moderately corrosive fluid
Product details

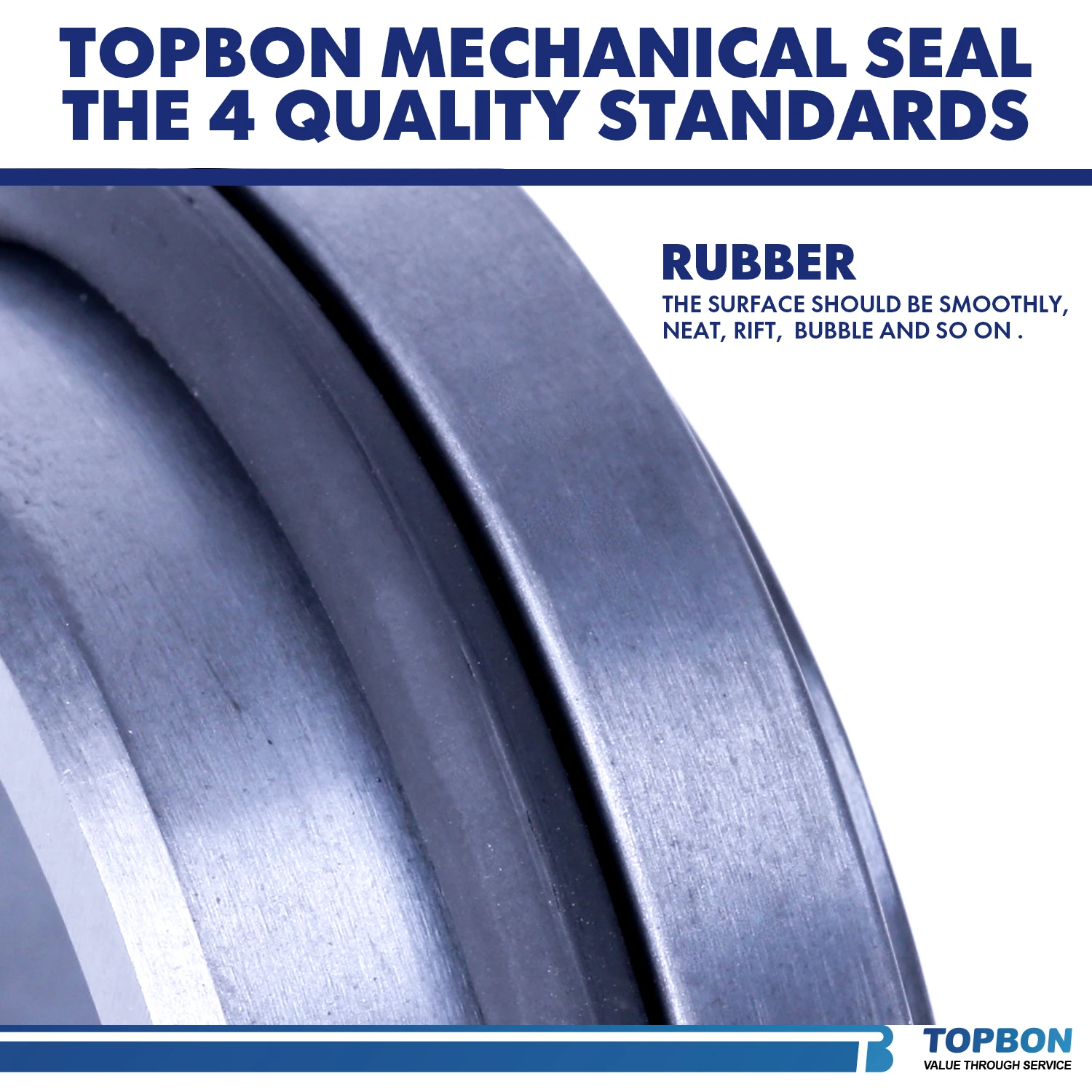

![](https://icdn.tradew.com/file/202008/1574616/jpg/7519262.jpg?x-oss-process=image/quality,Q_90)

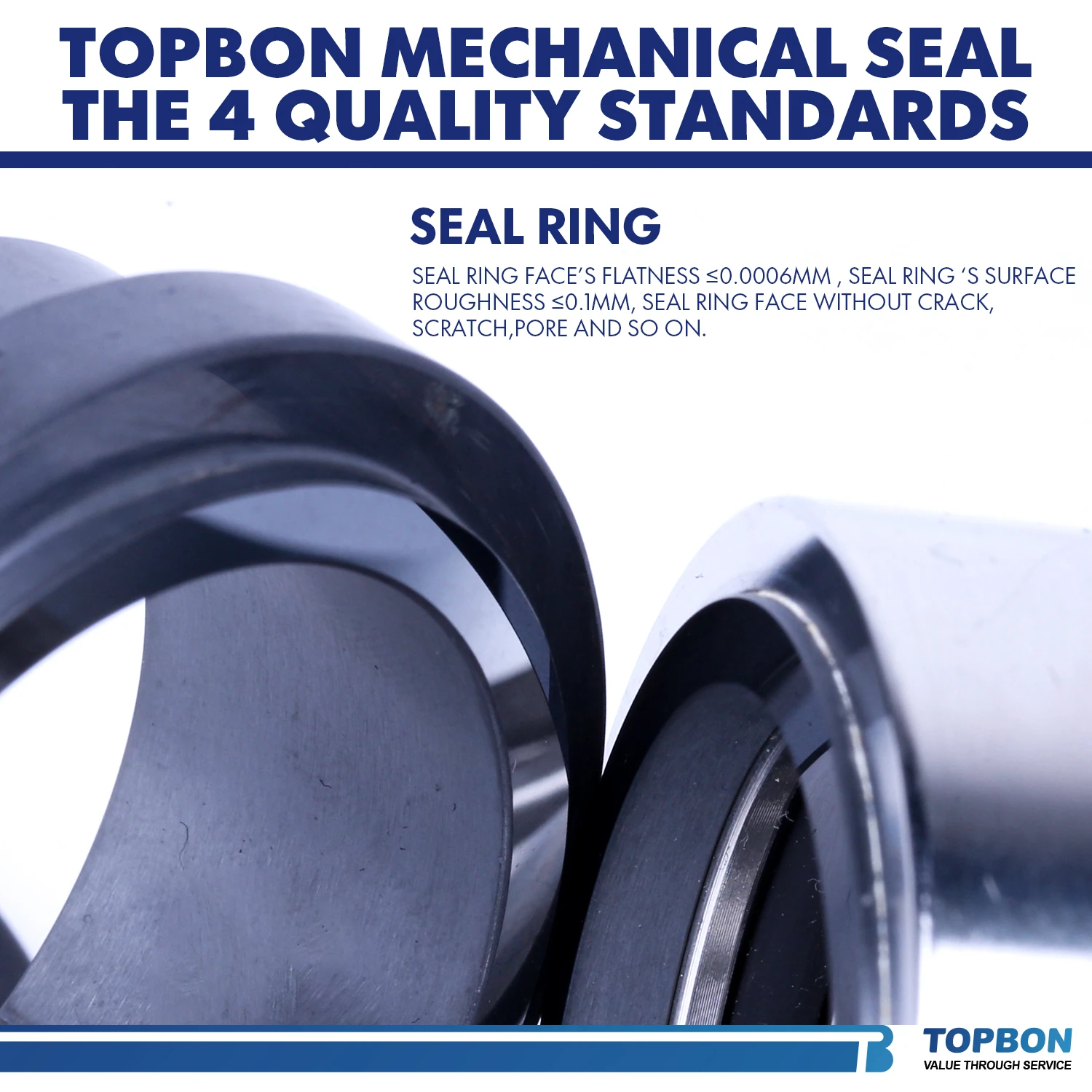

![](https://icdn.tradew.com/file/202008/1574616/jpg/7519263.jpg?x-oss-process=image/quality,Q_90)

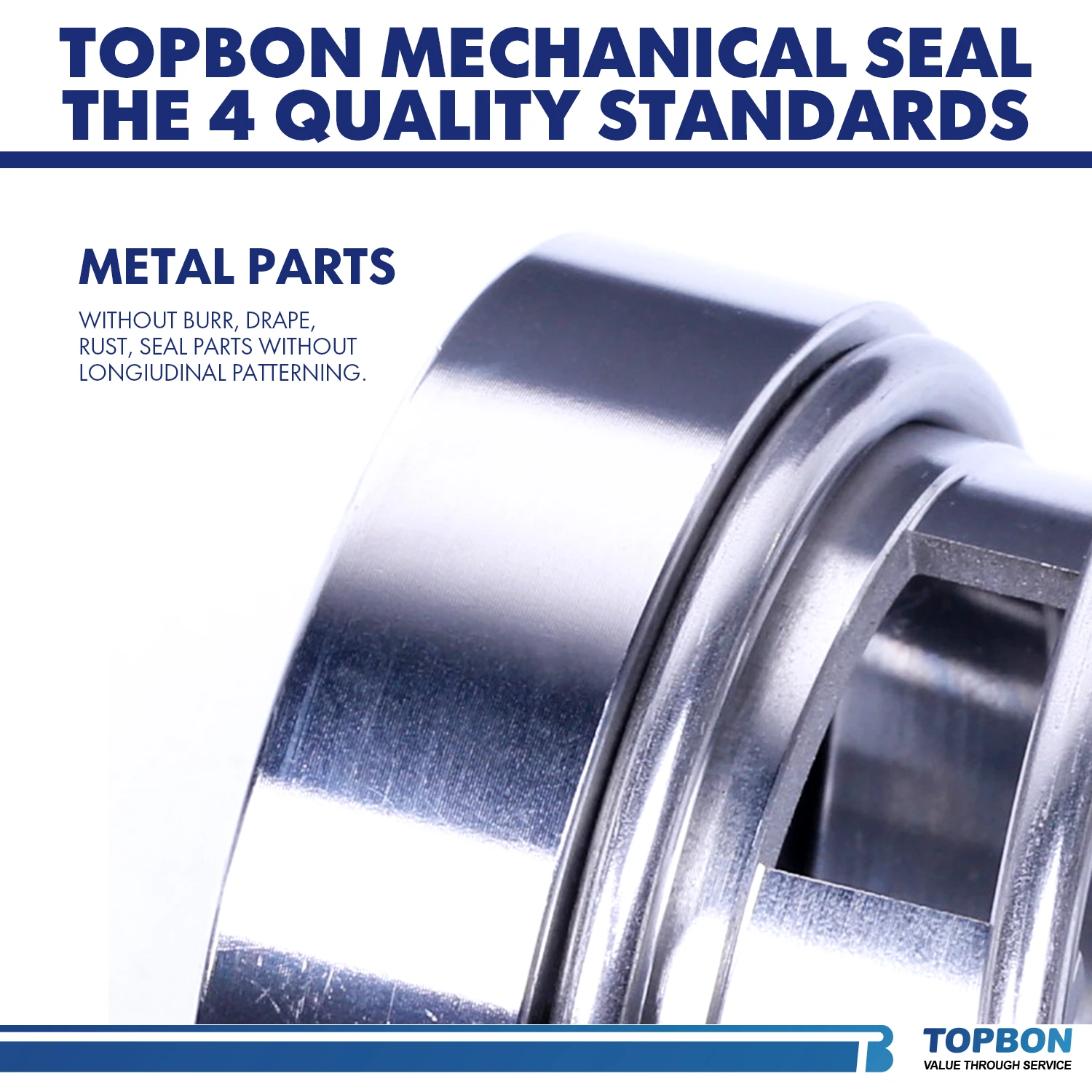

![](https://icdn.tradew.com/file/202008/1574616/jpg/7519264.jpg?x-oss-process=image/quality,Q_90)

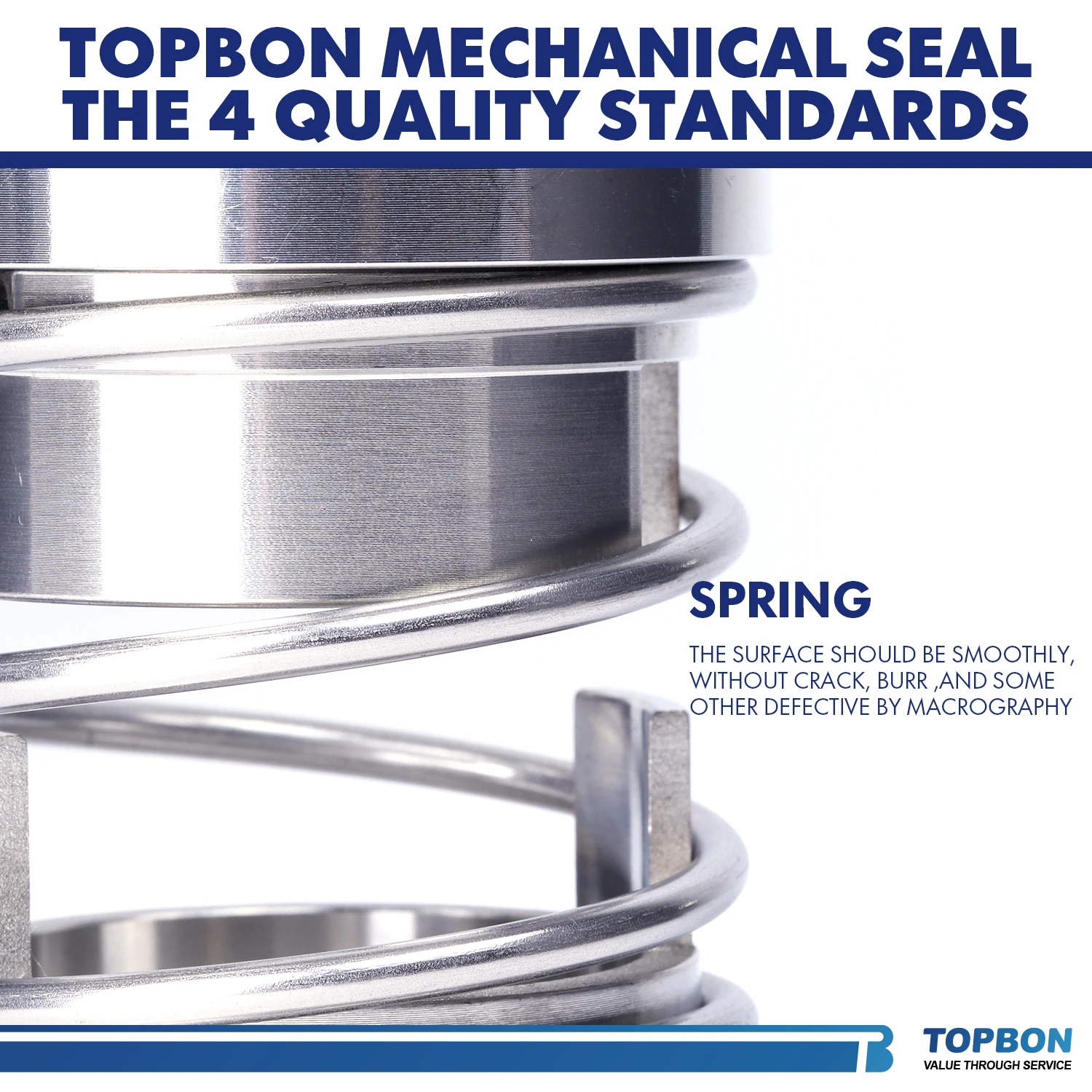

![](https://icdn.tradew.com/file/202008/1574616/jpg/7519265.jpg?x-oss-process=image/quality,Q_90)
Drawing
![](https://icdn.tradew.com/file/202008/1574616/png/7475280.png?x-oss-process=image/quality,Q_90)
d(mm) |
D1 | D2 | D3 | L | L1 | L10 |
12 | 23.00 | 19.00 | 22.00 | 39.00 | 31.00 | 40.50 |
12s | 23.00 | 19.00 | 22.00 | 34.00 | 26.00 | 35.50 |
16 | 27.00 | 23.00 | 26.00 | 40.50 | 32.50 | 41.50 |
16s | 27.00 | 23.00 | 26.00 | 35.50 | 27.50 | 36.50 |
