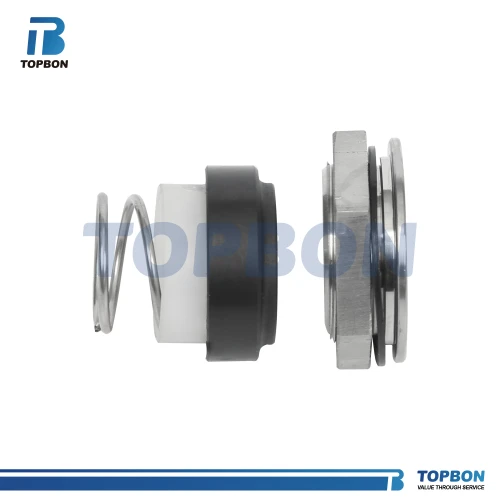

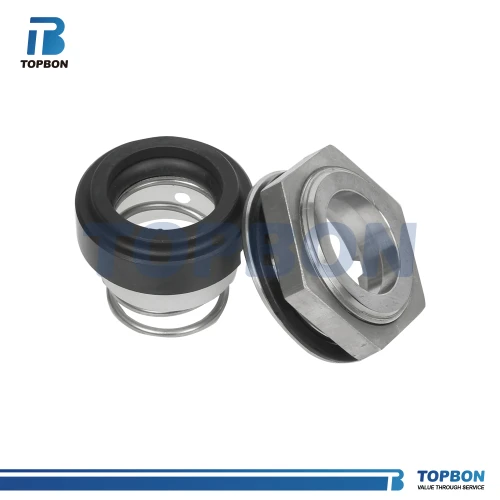

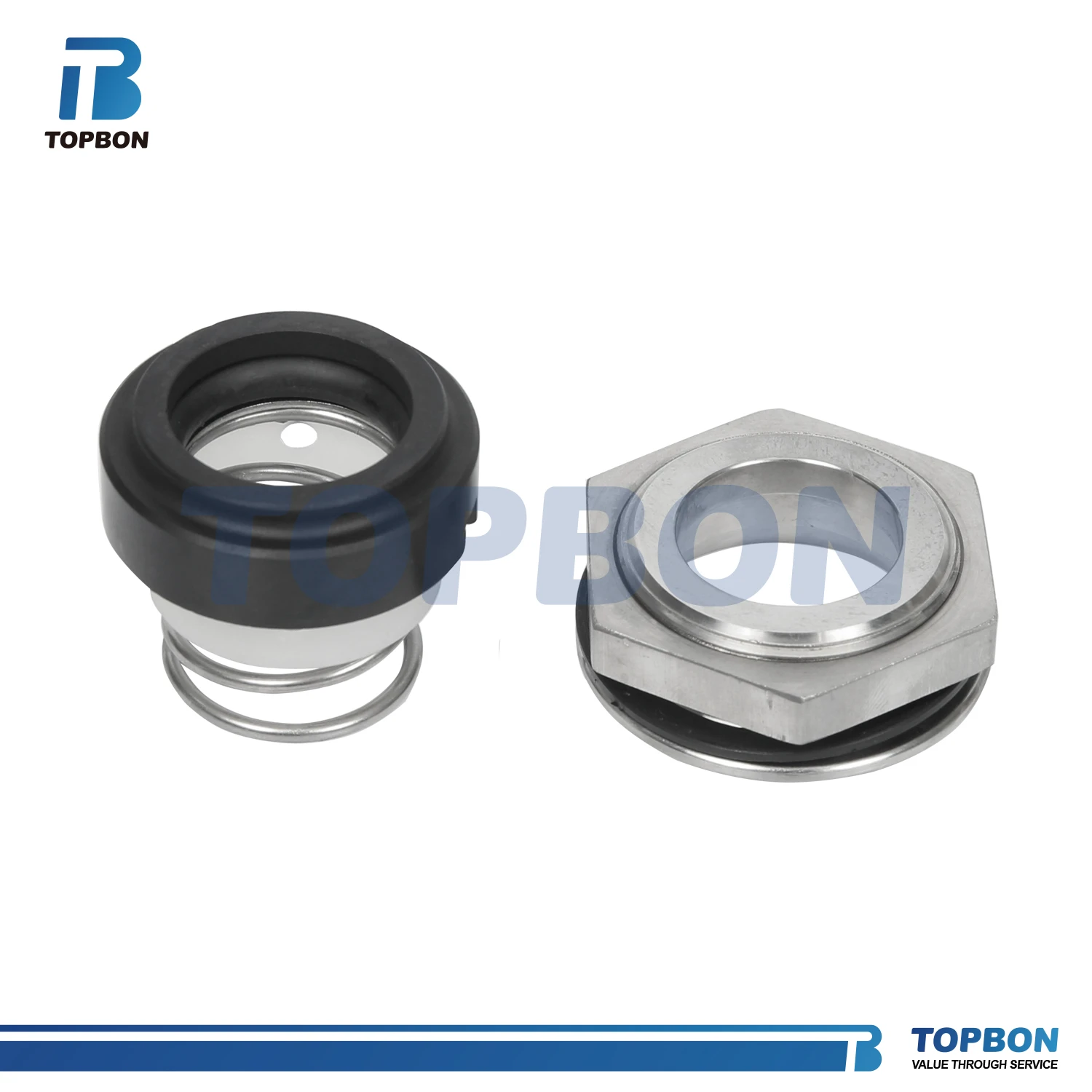

Mechanical seal TBAL93B-22 replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm), Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps
Mechanical seal TBAL93B-22 replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm), Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps
Mechanical seal TBAL93B-22 replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm), Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps
Mechanical seal TBAL93B-22 replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm), Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps

Mechanical seal TBAL93B-22 replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm), Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps

Model
TBAL93B-22

Item specifics

Rotary Ring Material
CAR/SIC
Stationary Ring Material
SUS304/SUS316SIC/TC
O-Ring Material
VIT,EPDM
Spring & Metal Parts
SUS304/SS316

Review

Description

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBAL93B-22
TBAL93B-22 Mechanical seal replace AES P07-22D, Vulcan 93B,Billi BB13D(22mm),
Suit for Alfa Laval ME155AE,GM1,GM1A,GM2 and GM2A,MR166E Pumps

Operational Conditions:
Temperature: -20℃ to +140℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
Stationary Ring: SUS304/316, SIC, TC
Rotary Ring: CAR, SIC, TC
Secondary Seal: VIT, EPDM
Spring and Metal Parts: SUS304,SUS316
Operational Conditions:

Clean Water

sewage water

oil and other moderately corrosive fluid
Seal Size:
22mm
Product details

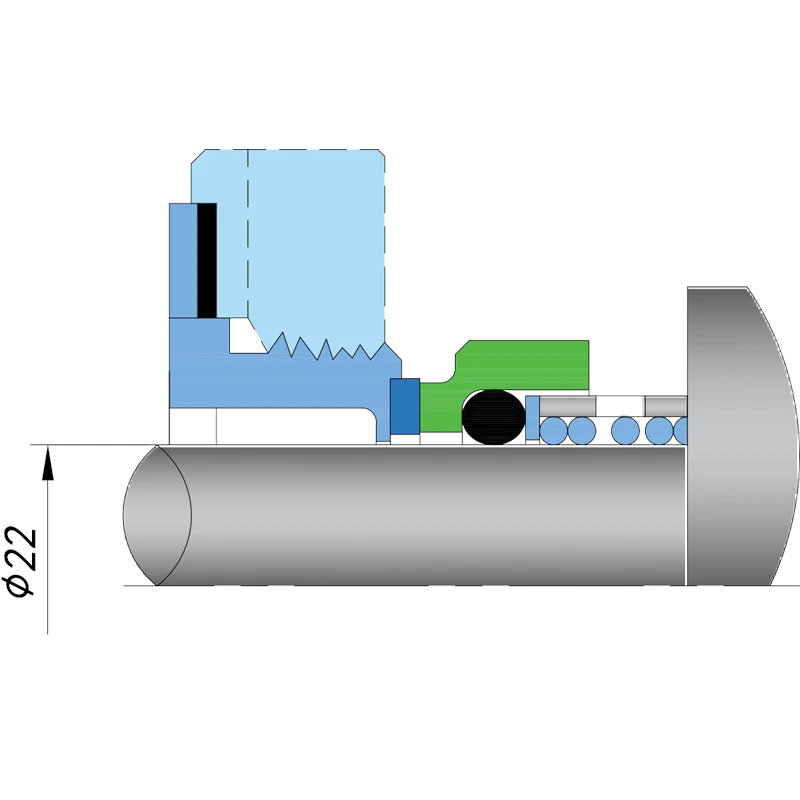

Drawing
