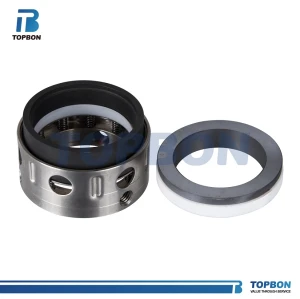

Mechanical Seal TB8BT replace John Crane 8B1T
Mechanical Seal TB8BT replace John Crane 8B1T

Mechanical Seal TB8BT replace John Crane 8B1T

Model
TB8BT

Item specifics

Temperature
-20℃-180℃
Speed
≦15m/s
Pressure
≦2.5MPA
Stationary Seat
TBT21
Rotary Ring Material
CAR/SIC/TC
Stationary Ring Material
CER/SIC/TC
O-Ring Material
VIT/NBR/EPDM
Spring & Metal Parts
SUS304/SUS316
Application
Clean Water，Sewage Water，Oil

Review

Description

Product Introduction
Product Size
Product Details
Product Model
TB8BT mechanical seal
Replacement to:
John Crane 8B1T
Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤2.5MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: TBT21
Alternative:
Product details
SIZE
Size/
Inch
d0
d
D3
D2
D1
L1
L2
L6
1.000
25.4
22.2
36.50
22.9
38.10
33.32
10.3
8.7
1.125
28.5
25.4
39.67
26.1
41.28
34.93
11.1
8.7
1.250
31.7
28.5
42.85
29.3
44.45
34.93
11.1
8.7
1.375
34.9
28.5
49.20
29.3
44.45
42.85
11.1
8.7
1.500
38.1
31.7
49.20
32.4
47.63
36.50
11.1
8.7
1.625
41.2
34.9
57.15
35.6
50.80
40.46
11.1
11.1
1.750
44.4
38.1
58.72
38.8
53.96
44.45
11.1
11.1
1.875
47.6
41.2
63.50
42.4
60.33
44.45
12.7
11.1
2.000
50.8
44.4
66.68
45.5
63.50
44.45
12.7
11.1
2.125
53.9
47.6
71.42
48.7
66.68
52.37
12.7
12.7
2.250
57.1
50.8
72.21
51.9
69.85
44.45
12.7
12.7
2.375
60.3
53.9
76.20
55.0
76.20
52.37
14.3
12.7
2.500
63.5
57.1
79.38
58.2
79.38
44.45
14.3
12.7
2.625
66.6
60.3
82.55
61.4
82.55
52.37
14.3
12.7
2.750
69.8
63.5
85.73
64.6
85.73
52.37
14.3
12.7
2.875
73.0
66.6
88.90
67.7
85.79
52.37
15.9
12.7
3.000
76.2
69.8
92.08
70.9
88.90
52.37
15.9
12.7
3.125
79.3
73.0
95.25
74.1
95.25
52.37
15.9
14.3
3.250
82.5
76.2
98.43
77.3
98.43
52.37
15.9
14.3
3.375
85.7
79.3
101.60
80.5
101.60
52.37
19.8
14.3
3.500
88.9
82.5
104.78
83.6
104.78
52.37
19.8
14.3
3.625
92.0
85.7
107.95
86.8
107.95
52.37
19.8
14.3
3.750
95.2
88.9
111.13
90.0
111.13
52.37
19.8
14.3
3.875
98.4
92.0
114.30
93.1
114.30
52.37
19.8
14.3
4.000
101.6
95.2
117.48
96.3
117.48
52.37
19.8
14.3
